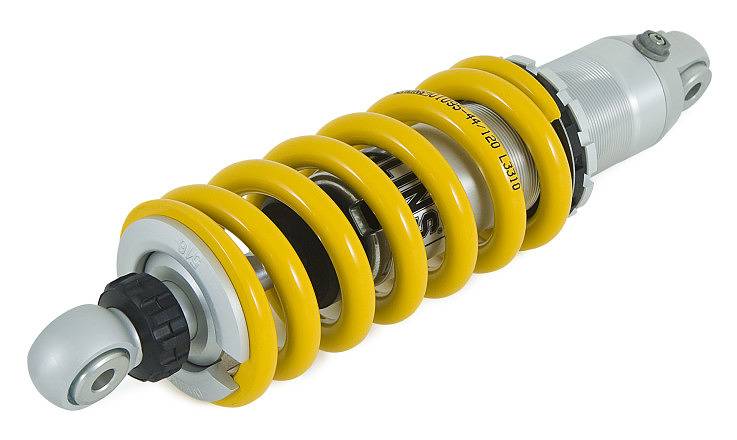

Ohlins KT 789 Street S46 Shock: KTM Duke 790 "Type S46DR1"

The STX46 Street Performance Line is based on our popular STX46 DR1 shock absorber and developed for naked sports bikes and street performance bikes. It features a large 46mm main piston and an internal gas reservoir within the main body of the shock.

With adjustable damping you can change the behavior of the shock to suit your taste and even fit a hydraulic spring pre loader to change the stance of the bike. This is the perfect choice for the naked sports bike, or as well call it: Street Performance Line.

Specs:

Monotube shock absorber

Öhlins well proven design

Adjustable rebound damping and compression

A range of spring rates available

Maintenance possibilities

Optional hydraulic spring pre loader

Available to a large range of bike models

Part Number KT 789
Type Code S46DR1
Length 387 mm
Spring 01092-54 (Y)


Type S46DR1


Single Tube Design

46mm piston diameter

Monotube high pressure gas type of shock absorber with internal reservoir in the main body

Adjustable rebound damping Adjuster wheel or slot above the eye end or on the reservoir

All Öhlins shocks are supplied based on rider's weight





Please note: Image may not be of the correct shock!










Very Important: Special ordered item: No cancellation or return after the order has been placed with the manufacturer!
